The LCU Light Control Unit is designed for the control of mains voltage lighting circuits when used in conjunction with HD range of handset units. This allows the bed light and Nursecall to be operated from a single HD1 portable handset unit. The unit requires a connection to the Handset and must be used in conjunction with the L622HL Call Point using the 3 contact jack socket. The maximum lamp load for the LCU is 80Watts [Resistive load only] and the switching voltage is 220-240VAC. The unit is fitted with a monitor LED which indicates when the light channel is on or off. All mains wiring should be provided in accordance with the current edition of the IEE Wiring Regulations, or in accordance with the relevant national wiring regulations

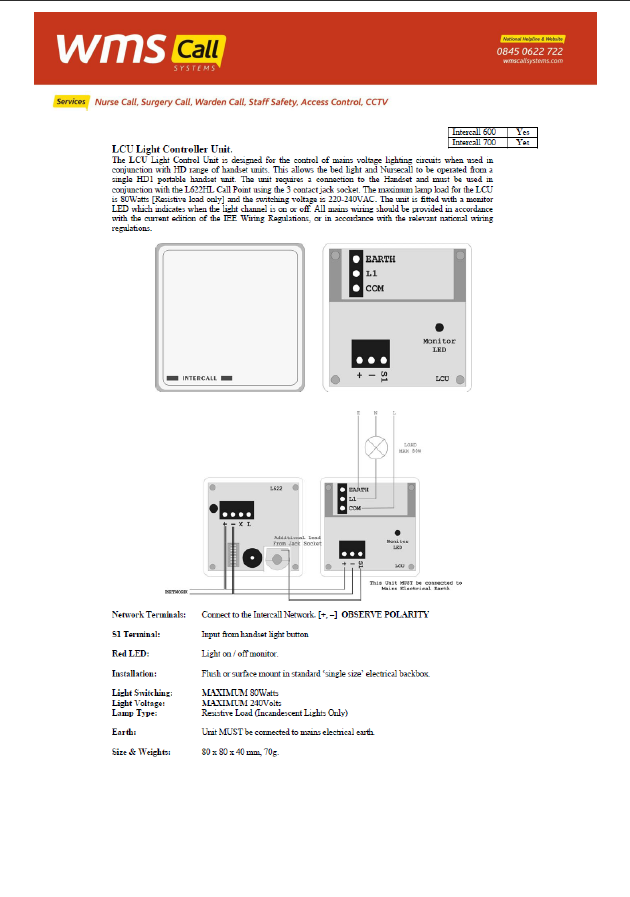

• Click HERE to download data sheet
