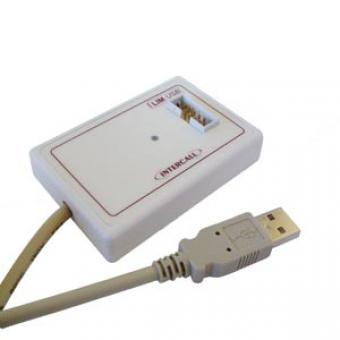

The LIMKIT contains all required components to configure the system including interface, leads and software. The Programming Module is used to program the software configurable devices such as the TIR4 Mk2 pendant trigger and the ST range of triggers together with the Room Text and User ID text within the power supply units. The unit is supplied with connection leads which are required to program different devices. The module is an interface between a Personal Computers’ RS232 port and the programmed device or power supply. It is supplied with the following leads:
• Combined power supply and serial lead for connection to PC RS232 port with Plug Top style power supply.
• Trigger and auxiliary device programming lead
• Power Supply connection Lead.
• Software disk containing; Limprog, DosTrig and 747Set programming software.

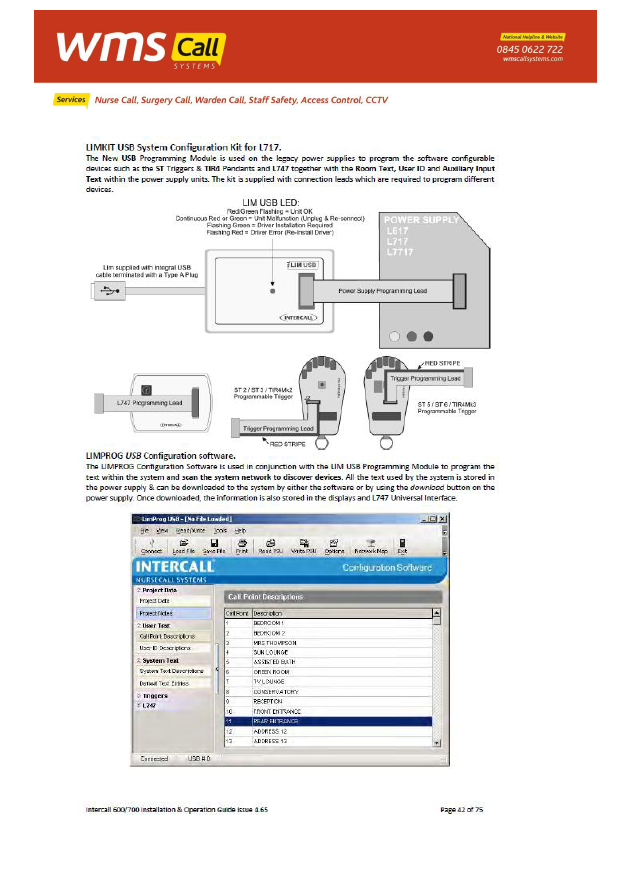

• Click HERE to download data sheet
